TE Connectivity 7 Pole Cable Mount Housing Plug - 206226-1

Write a review

$6.82

Spend $150.00 or More to Unlock Free Shipping Across Australia

TE Connectivity 206226-1 7 Pole Cable Mount Housing Plug, For Use With Male Contacts - Brand new item, still in OEM packaging - Check out the images for more product details Product details From TE Connectivity, these Series 3 cable...View more

Hurry Up! Only 31 Left in Stock!

Add to cart

I agree with the terms and conditions

Add to compare Added to compare Add to wishlist Added to wishlist

Sku: JMRS-2211218

Availability: Many in stock Unavailable

Description
Reviews ( 0 )

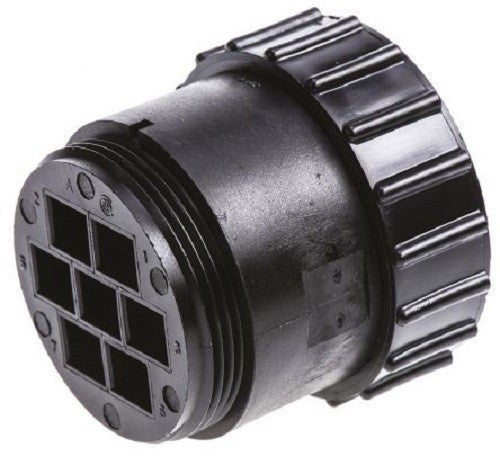

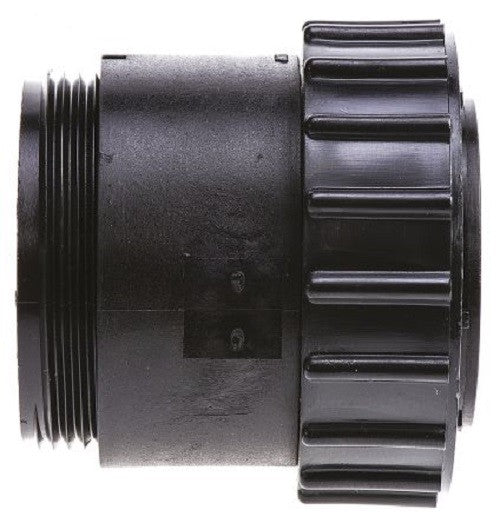

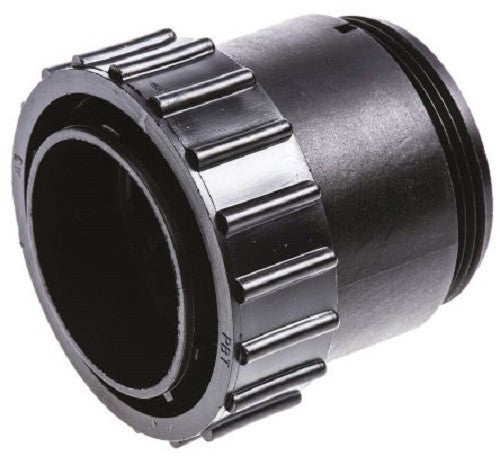

TE Connectivity 206226-1 7 Pole Cable Mount Housing Plug, For Use With Male Contacts

- Brand new item, still in OEM packaging

- Check out the images for more product details

Product details

From TE Connectivity, these Series 3 cable mount Circular Plastic Connector receptacles are moulded from thermoplastic and feature a threaded contact for a secure connection to corresponding Series 3 CPC connectors. Available in 3 and 7 pole arrangements in both male and female variants. Crimp termination lightweight glass-filled nylon connectors, suited to industrial, process control and transportation usage. Three styles of connector shells are available, fixed receptacles, free (in-line) receptacles and cable mounted plugs. All are available in pin or socket configurations. The free receptacles allow in-line connections with the cable mount plugs. All are rated at 250Vac, with a temperature rating of -55°C to +105°C. Insulation resistance ≥5000MΩ.,Series 1 offers standard density. Series 2 enables a higher density of contacts and series 3 a low density of contacts for power applications. For full information on contacts and tooling see other Range 'AMP CPC Contacts and Tooling',Sealing accessories are available for IP65 protection for Series 1. Fixed receptacles require a flange seal. For cable mounting shells use standard series 1 shells in conjunction with a cable entry seal.,Series 3 connectors are rated at 35A and use pin contacts stock no. 282-6292 (16-12awg), stock no. 282-6309 (10-8awg) and socket contacts stock no. 282-6315 (16-12awg), stock no. 282-6321 (10-8awg). Note also that the gland adaptor backshells connect any standard PG threaded cable gland to the respective CPC cable or panel mounted shell.

Manufacturer: TE Connectivity

Manufacturer Part Number: 206226-1

Sale Conditions: I take care in describing my goods as honestly and accurately as I can. If you require further details or clarification, please don't hesitate to contact me.

Shipping: Items are shipped using Australia Post and are charged at cost. Items will be shipped within 1-2 business days of payment. Shipping can be combined if larger quantities are purchased. Other freight methods may be available - contact me first for details. Note: For very large items, freight will be required (Australia post won't send them). Please contact me first.

Item Collection: This collection is from Killara (North of Sydney).

Payment: Please respond with payment or contact within 24 hours of item sale. Don't bid if you don't intend to pay. Note: I prefer bank deposit or PayPal where possible.

Feedback: After receipt of my item, please leave positive feedback. I will do the same one I've received your feedback. If you have any problems, please contact me before leaving any negative feedback - thank you for your business!

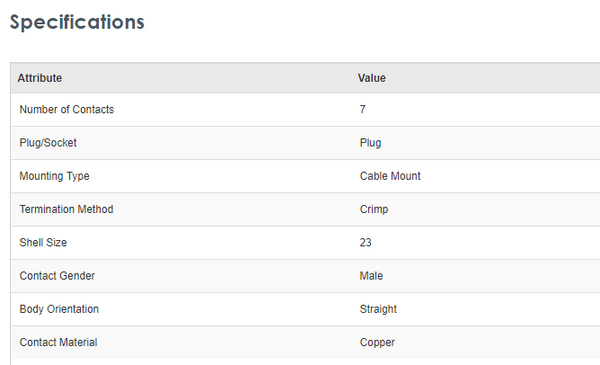

Images are for reference only. See Product Specifications. Please order as per the Product Specifications.

TE Connectivity 206226-1 7 Pole Cable Mount Housing Plug, For Use With Male Contacts
