Schurter DP-NO/NC Momentary Push Button Switch - 1241.6934.1124000

Write a review

$61.36

Spend $500.00 to Free Shipping

Schurter 1241.6934.1124000 DP-NO/NC Momentary Push Button Switch, IP67, 22mm, Panel Mount Blue LED, 250V ac - Brand new item, still in OEM packaging - Check out the images for more product details Product details Robust pushbutton switch suitable for use...View more

Hurry Up! Only 0 Left in Stock!

Out of stock

Add to compare Added to compare Add to wishlist Added to wishlist

Sku: JMRS-436913

Availability: Many in stock Unavailable

Description
Reviews ( 0 )

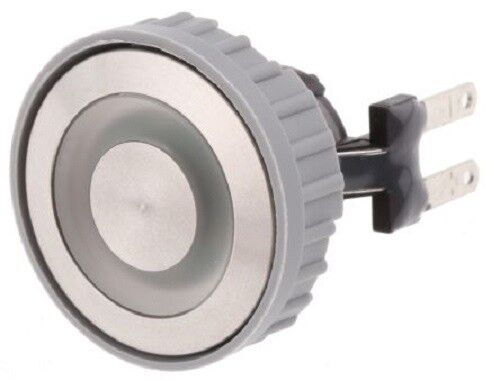

Schurter 1241.6934.1124000 DP-NO/NC Momentary Push Button Switch, IP67, 22mm, Panel Mount Blue LED, 250V ac

- Brand new item, still in OEM packaging

- Check out the images for more product details

Product details

Robust pushbutton switch suitable for use in harsh environments - IK07 shock resistance (DIN EN 50102)

Stainless steel housing and momentary actuator - IP40 DPDT microswitch

Designed with two separate switching contacts - can be configured as normally open, normally closed or change-over

Can be used in applications where an additional second contact is required, e.g. emergency switching

Actuator with 5N operating force and 1mm travel - protrudes 1.7mm above panel

Quick connect terminals

Long life - up to 1,500,000 mechanical operations

Non illuminated or red, green or blue LED ring illuminated (requires 24Vdc supply & series resistor) versions available in 19 or 22mm Ø panel cut outs

Manufacturer: Schurter

Manufacturer Part Number: 1241.6934.1124000

Sale Conditions: I take care in describing my goods as honestly and accurately as I can. If you require further details or clarification, please don't hesitate to contact me.

Shipping: Items are shipped using Australia Post and are charged at cost. Items will be shipped within 1-2 business days of payment. Shipping can be combined if larger quantities are purchased. Other freight methods may be available - contact me first for details. Note: For very large items, freight will be required (Australia post won't send them). Please contact me first.

Item Collection: This collection is from Killara (North of Sydney).

Payment: Please respond with payment or contact within 24 hours of item sale. Don't bid if you don't intend to pay. Note: I prefer bank deposit or PayPal where possible.

Feedback: After receipt of my item, please leave positive feedback. I will do the same one I've received your feedback. If you have any problems, please contact me before leaving any negative feedback - thank you for your business!

I'm listing new things all the time - check out my other items for sale! Visit My Store here!

International Buyers please note: Import duties, taxes, and charges aren't included in the item price or postage cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.

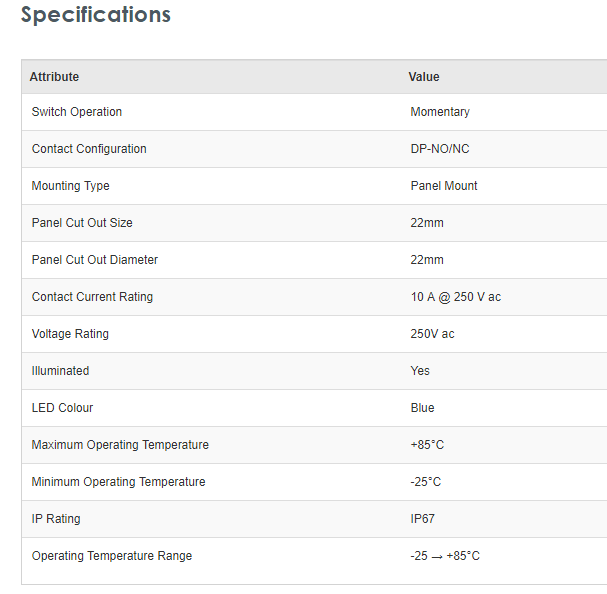

Images are for reference only. See Product Specifications. Please order as per the Product Specifications.

Schurter 1241.6934.1124000 DP-NO/NC Momentary Push Button Switch, IP67, 22mm, Panel Mount Blue LED, 250V ac
