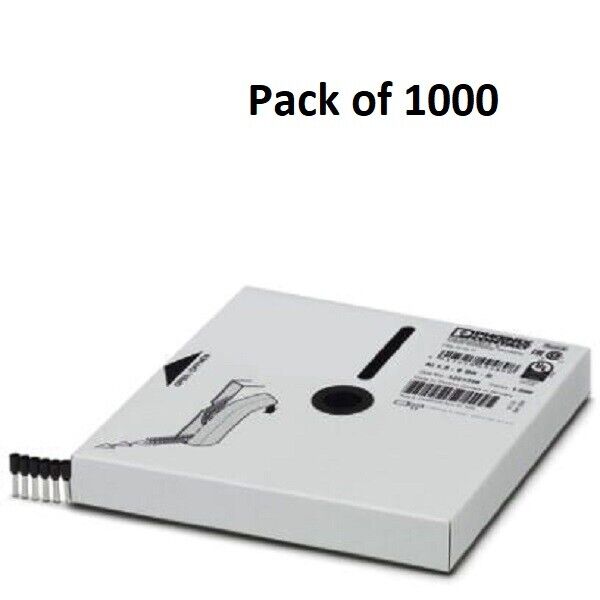

Phoenix Contact 3201398 Ferrule-Ai 1.5-8 Bk-B-1000 pack
- Brand new item, still in OEM packaging
- - Check out the images for more product details
Product details:
Ferrules, 1.5 mm², taped, sleeve length: 8 mm, with plastic collar, galvanically tin-plated, color: black, color range according to DIN 46228-4, CSA-certified
Key Features:
• Length (b): 14 mm
• Maximum stripping length: 11 mm
• Sleeve length: 8 mm
• Inner dimension of the insulating collar (d): 3.4 mm
• Ferrule diameter: 1.7 mm
• Insulating collar thickness: 0.3 mm
• Sleeve wall thickness: 0.15 mm
• Short-term temperature: 120 °C
• Max. permanent temperature: 105 °C (-40°C no load / 0°C dynamic load)
• Color: black
• Components: free from silicone and halogen
• Flammability rating according to UL 94: HB
• Material: CU-DHP
• Coating: tin-plated (galvanic)
• Conductor category: Stranded conductors, class 2, 5, 6 / B, C, K, M
• Connection in acc. with standard: CSA
• Flammability rating according to UL 94: HB
Manufacturer: Phoenix Contact
Manufacturer Part Number: 3201398
Shipping Dimensions: 15X15X2 CM
Shipping Weight: 148 GRAMS
