NF CR Active Filter, Band Pass Filter, 2nd Order 1.6kHz, 20-Pin SIP - SR-2BP1

Write a review

$68.61

Spend $150.00 to Free Shipping

NF SR-2BP1, CR Active Filter, Band Pass Filter, 2nd Order 1.6kHz, 20-Pin SIP - Brand new item, still in OEM packaging - Check out the images for more product details Product details: CR Active Filter (Resistance Tuneable Filter) -Cutoff (center)...View more

Hurry Up! Only 3 Left in Stock!

Add to cart

I agree with the terms and conditions

Add to compare Added to compare Add to wishlist Added to wishlist

Sku: JM-NF-SR-2BP1

Availability: Many in stock Unavailable

Description
Reviews ( 0 )

NF SR-2BP1, CR Active Filter, Band Pass Filter, 2nd Order 1.6kHz, 20-Pin SIP

- Brand new item, still in OEM packaging

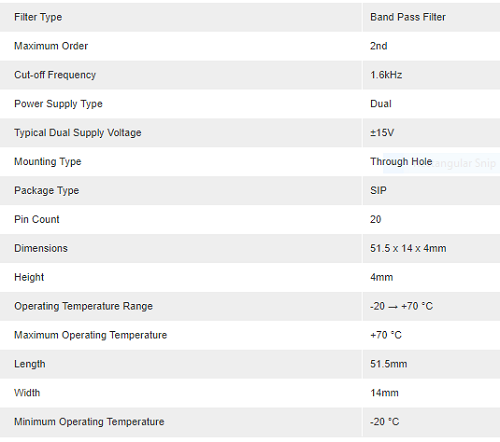

- Check out the images for more product details

Product details:

CR Active Filter (Resistance Tuneable Filter)

-Cutoff (center) frequency is set using two or four external resistors

-Low-pass, high-pass, band-pass, band-stop types available

-Standard type SR series, low power consumption type SRA series

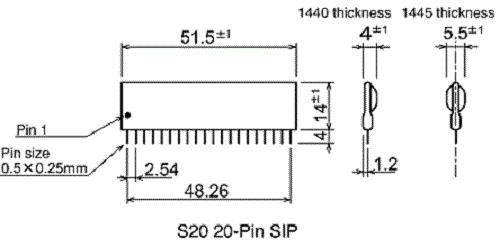

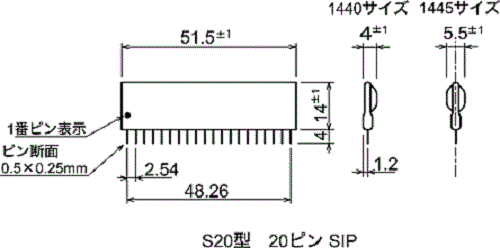

-Standard 20-pin Single-in-line package

Manufacturer: NF

Manufacturer Part Number: SR-2BP1

Frequency setting method: 2 or 4 external resistors

Input impedance: > 50kΩ

Maximum input voltage: ≤ ± 10V, ≤50kHz : ± 5V (4BL3/4FL3/2BLH3, is ± 10V (100kHz)

Output Impedance: < 100Ω

Maximum output voltage: ±10V (4BL3/4FL3/2BLH3 below 100kHz,others below 10kHz )

DC offset voltage: ±30mV max

Temperature and humidity range

Operation: -20 to +70°C, 10 to 95% RH

Storage: -30 to +80°C, 10 to 80% RH

Sale Conditions: I take care in describing my goods as honestly and accurately as I can. If you require further details or clarification, please don't hesitate to contact me.

Shipping: Items are shipped using Australia Post and are charged at cost. Items will be shipped within 1-2 business days of payment. Shipping can be combined if larger quantities are purchased. Other freight methods may be available - contact me first for details. Note: For very large items, freight will be required (Australia post won't send them). Please contact me first.

Item Collection: This collection is from Killara (North of Sydney).

Payment: Please respond with payment or contact within 24 hours of item sale. Don't bid if you don't intend to pay. Note: I prefer bank deposit or PayPal where possible.

Feedback: After receipt of my item, please leave positive feedback. I will do the same one I've received your feedback. If you have any problems, please contact me before leaving any negative feedback - thank you for your business!

I'm listing new things all the time - check out my other items for sale! Visit My Store here!

International Buyers please note: Import duties, taxes, and charges aren't included in the item price or postage cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.

Images are for reference only. See Product Specifications. Please order as per the Product Specifications.
