Fluke Networks MS2-TTK MicroScanner2 Network Cable Tester Kit RJ45 RJ11

Write a review

$2,350.45

Spend $150.00 or More to Unlock Free Shipping Across Australia

Fluke Networks MS2-TTK MicroScanner² Network Cable Tester Kit Key features Graphical wire map, length, cable ID, & distance to fault MicroScanner² cable tester, punch down tool, tone generator & probe Tests all common media types including RJ11, RJ45, & Coax...View more

Hurry Up! Only 2 Left in Stock!

Add to cart

I agree with the terms and conditions

Add to compare Added to compare Add to wishlist Added to wishlist

Sku: LHMUR-MS2TTK

Barcode: 0754082058618

Availability: Many in stock Unavailable

Description
Reviews ( 0 )

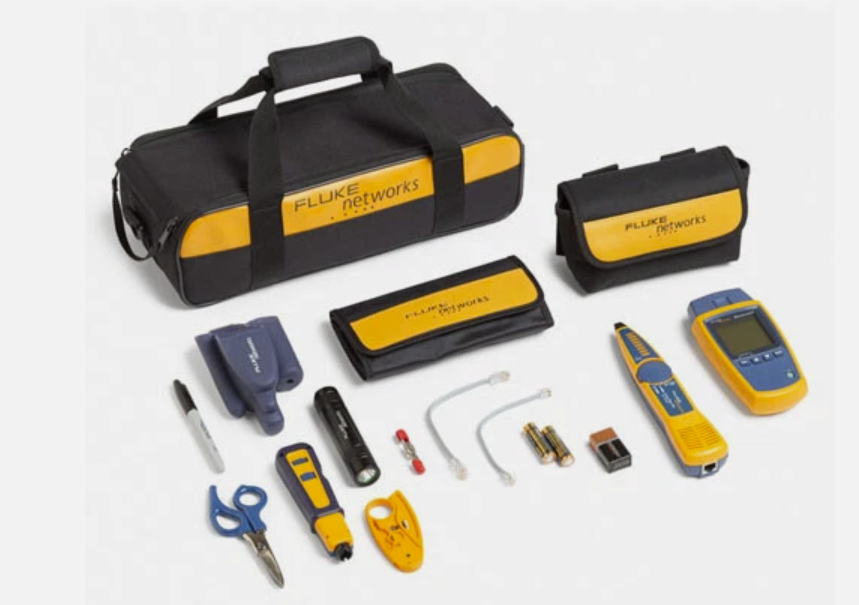

Fluke Networks MS2-TTK MicroScanner² Network Cable Tester Kit

Key features

Graphical wire map, length, cable ID, & distance to fault
MicroScanner² cable tester, punch down tool, tone generator & probe
Tests all common media types including RJ11, RJ45, & Coax
Locates virtually any cable w/ IntelliTone digital & analog toning
Verifies media services: 10/100/1000 Ethernet, POTS, & PoE

General Specifications
Test connectors		Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs. MicroScanner²: F-connector for coaxial cable.
Power		Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries Battery life: 20 hours of typical use Other compatible battery types: 2 AA photo lithium, NIMH, NICAD
Dimensions and weight (with batteries installed and wiremap adapter attached)		3 in x 6.4in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) MicroScanner²: 10.6 oz (300 g) MicroScanner PoE: 10.6 oz (300 g)
Display		Monochrome LCD with backlight
Test Modes
Cable test	Measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports. MicroScanner PoE also shows HIGH Ω when the resistance of the cable is more than 12.5 Ω. Displays results on one screen.
Tone	Generates Intellitone™ and normal analog toning signals
PoE	MicroScanner²: Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices MicroScanner PoE: Solicits and detects the presence of 802.3af, at, bt, and UPOE (Cisco’s Universal Power over Ethernet) compatible PoE devices
