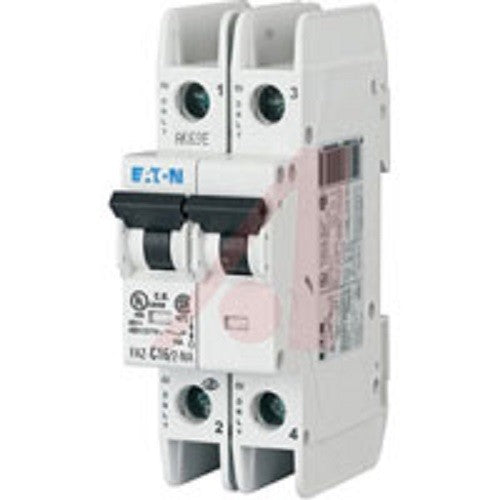

Eaton FAZ-C16/2-NA DIN Rail Mount Circuit Breaker, 16A, 2 Pole 277/480 VA - New

-Brand new item, still in OEM packaging

-Check out the images for more product details

Product details:

Optimum product quality, tested reliability and safety stand for best protection of personnel, installations and plant. Eaton’s FAZ-NA DIN rail mountable circuit breaker is designed for use in branch service applications. The FAZ-NA Series is available with B, C and D characteristics in accordance with UL 489, CSA C22.2 No.5, UL 1077, CSA C22.2 No.235 and IEC 60947-2. These devices are CE marked.

Broad Range of Tripping Curves:

- B Characteristic for Standard Circuit Protection

- C Characteristic for Higher Inrush Currents

- D Characteristic for Inductive and Capacitive Loads

Features:

- Rated Currents Up to 40A

- DIN Rail Mount

- Suitable for Branch Circuit Device Protection

- Current Limiting Design

- Fulfill UL489, CSA C22.2 No. 5 and IEC 60947-2

- Optional Ring Tongue Connection

- Module Width of Only 17.7 mm Per Pole

- Reliable and Safe Operation

- Captive Screws Cannot Be Lost

- Snap-On Accessories

- Contact Position Indicator

- Finger Proof

- Trip-Free Mechanism

Applications:

- Convenience Receptacle Circuits

- Motor Control Circuits

- Load Circuits Leaving the Equipment

- HACR Internal/External Equipment

- PLC I/O Points

- Computers

- Power Supplies

- Control Instrumentation

- Relays

- UPS

- Power Conditioners

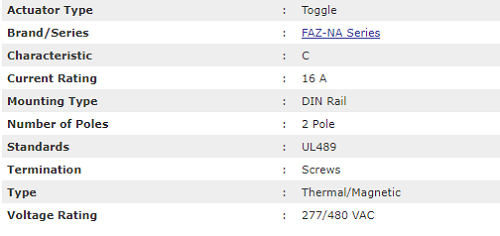

Manufacturer: Eaton

Manufacturer Part Number: FAZ-C16/2-NA

Product Range: FAZ Series

Voltage Rating VAC: 277/480 VA

Current Rating: 16A

No. of Poles: 2 Pole

Circuit Breaker Mounting: DIN Rail
