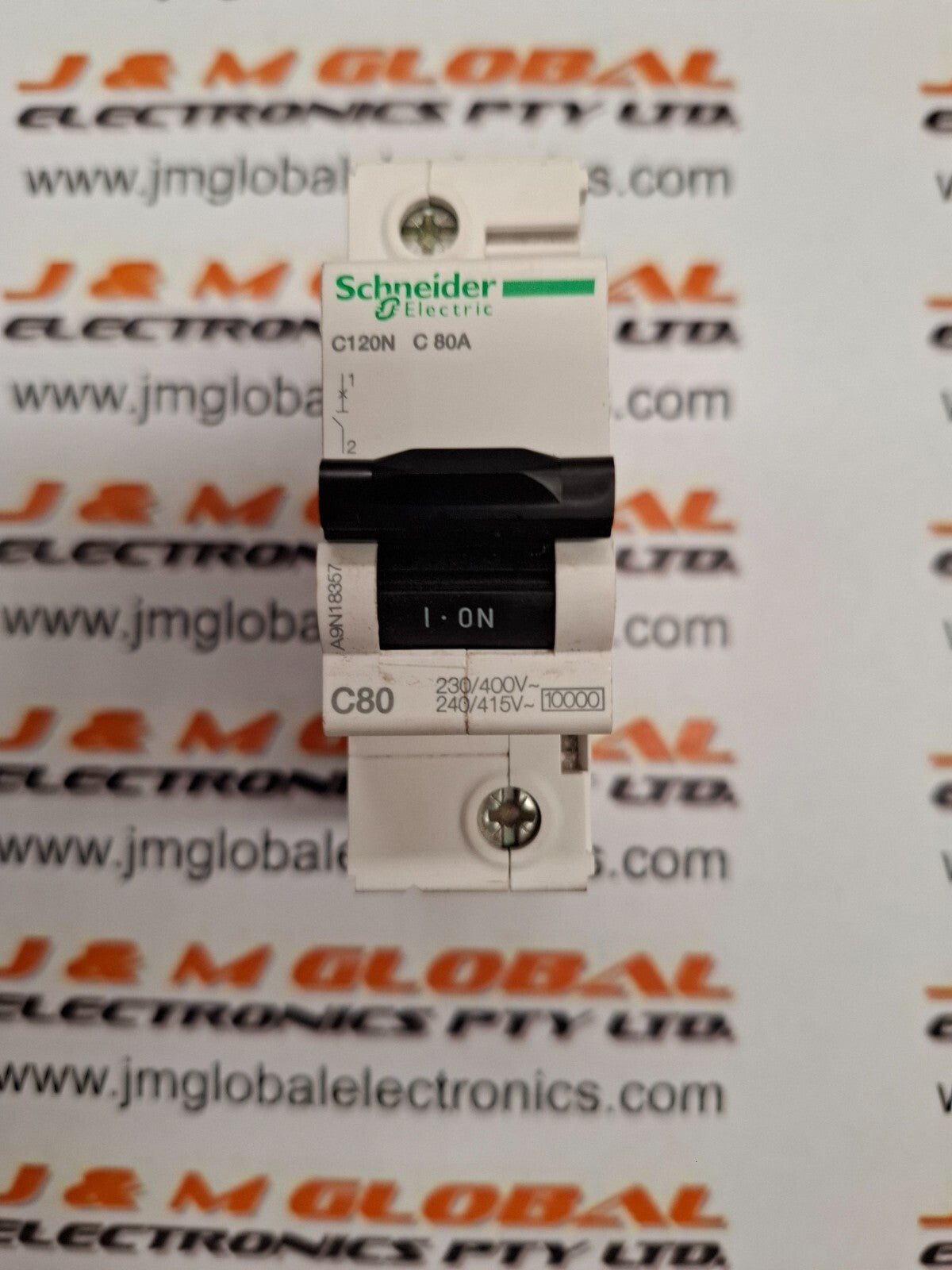

C120N 1P 80A C 10000A 240/415V MINIATURE- SCHNEIDER ELECTRIC - A9N18357

Write a review

$56.06

Spend $150.00 to Free Shipping

C120N 1P 80A C 10000A 240/415V MINIATURE- SCHNEIDER ELECTRIC - A9N18357This Acti9 C120N is a low voltage multistandard miniature circuit breaker MCB It is a 1P circuit breaker with 1 protected pole - 80A rated current and C tripping curve...View more

Hurry Up! Only 4 Left in Stock!

Add to cart

I agree with the terms and conditions

Add to compare Added to compare Add to wishlist Added to wishlist

Sku: LHSIL-A9N18357

Barcode: 3606480379314

Availability: Many in stock Unavailable

Description
Reviews ( 0 )

C120N 1P 80A C 10000A 240/415V MINIATURE- SCHNEIDER ELECTRIC - A9N18357

This Acti9 C120N is a low voltage multistandard miniature circuit breaker MCB It is a 1P circuit breaker with 1 protected pole - 80A rated current and C tripping curve The rated short circuit breaking capacity goes up to 3kA.

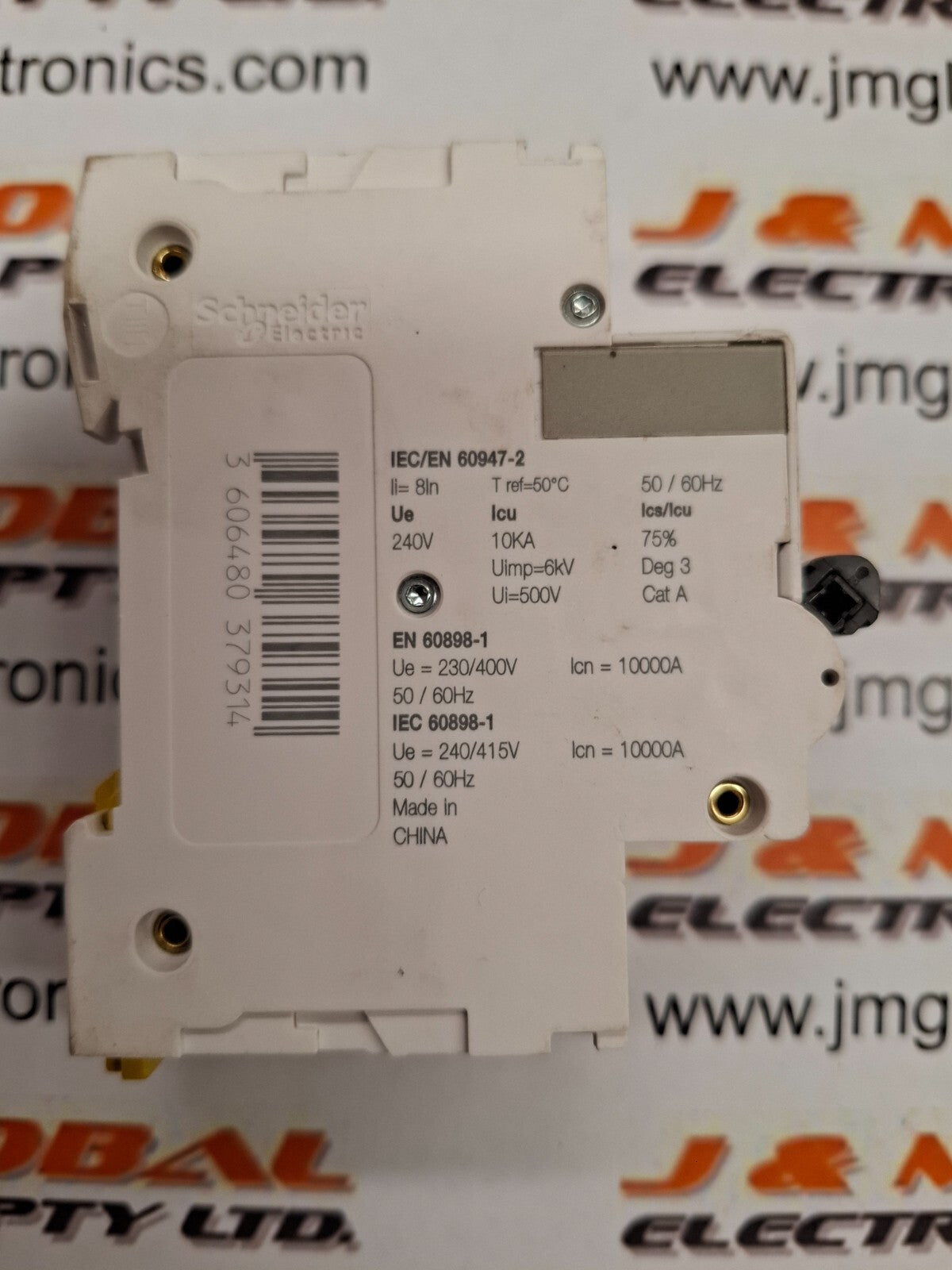

This Acti9 C120N is a low voltage multistandard miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 80A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 380VAC to 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 380VAC to 415VAC conforming to EN/IEC 60947-2 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. The presence of green strip guarantees contact open physically and allows work to be carried out safely on the downstream circuit. It has good overvoltage withstand capacity. The product is designed to offer a high industrial performance level It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is going from 380VAC to 415VAC. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 3 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 27mm x (H) 81mm x (D) 73mm. The weight is 0.205kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.

Manufacturer: Schneider Electric

Manufacturer Part Number: A9N18357

Listing Quantity: Each

Product Shipping Size: 9 X 8 X 5cm

Shipping Weight: 190 Grams

Sale Conditions: I take care in describing my goods as honestly and accurately as I can. If you require further details or clarification, please don't hesitate to contact me.

Shipping: Items are shipped using Australia Post and are charged at cost. Items will be shipped within 1-2 business days of payment. Shipping can be combined if larger quantities are purchased. Other freight methods may be available - contact me first for details. Note: For very large items, freight will be required (Australia post won't send them). Please contact me first.

Item Collection: This collection is from Killara (North of Sydney).

Payment: Please respond with payment or contact within 24 hours of item sale. Don't bid if you don't intend to pay. Note: I prefer bank deposit or PayPal where possible.

Feedback: After receipt of my item, please leave positive feedback. I will do the same one I've received your feedback. If you have any problems, please contact me before leaving any negative feedback - thank you for your business!

I'm listing new things all the time - check out my other items for sale! Visit My Store here!

International Buyers please note: Import duties, taxes, and charges aren't included in the item price or postage cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.

Images are for reference only. See Product Specifications. Please order as per the Product Specifications.
