ASC Zone Master DSP3/600 Distribution Surge Protector 30kA 600V Device NEW

Write a review

$871.31

Spend $150.00 or More to Unlock Free Shipping Across Australia

PD Devices ASC Distribution Surge Protector- New in Box-: 30kA 600 Mains Protector -Brand New, unused, still in OEM packaging -Check out the images for more product details Product details Manufacturer: PD Devices Manufacturer Part Number: RS-DSP3/600 Product Shipping Size:...View more

Hurry Up! Only 1 Left in Stock!

Add to cart

I agree with the terms and conditions

Add to compare Added to compare Add to wishlist Added to wishlist

Sku: JMRS-3759137

Availability: Many in stock Unavailable

Description
Reviews ( 0 )

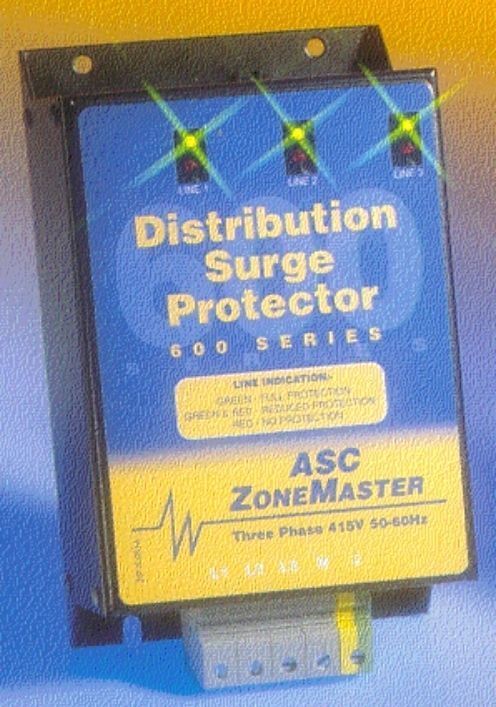

PD Devices ASC Distribution Surge Protector- New in Box-: 30kA 600 Mains Protector

-Brand New, unused, still in OEM packaging

-Check out the images for more product details

Product details

Manufacturer: PD Devices

Manufacturer Part Number: RS-DSP3/600

Product Shipping Size: 310 x 140 x 110mm

Shipping Weight: 1.24

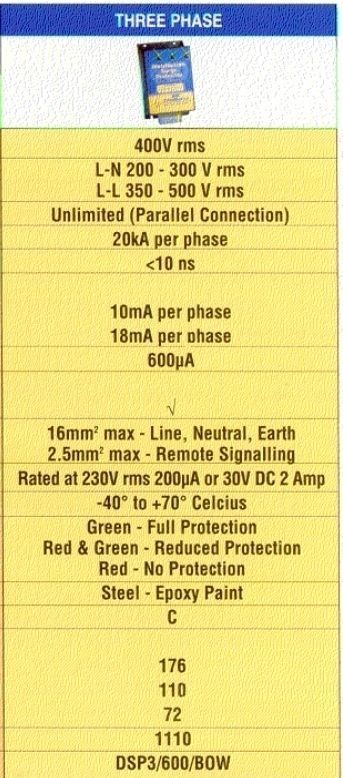

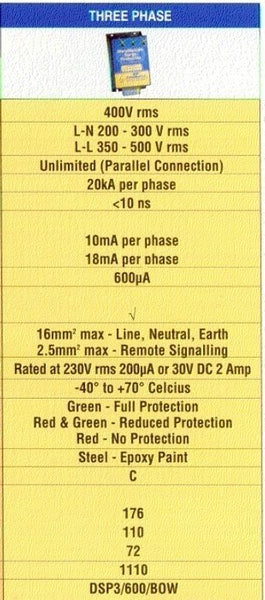

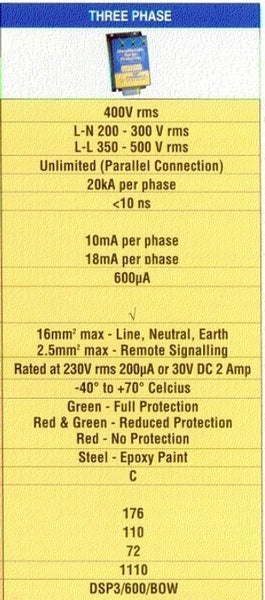

Specification
Three Phase
Voltage rating (Nominal) - 400V rms
Operating voltage range - L-N 200 - 300 V rms
                                         L-L 350 - 500 V rms
Maximum current rating - Unlimited (Parallel Connection)
Maximum surge current handling (8/20 μs) -40kA per phase
Response time - <10 ns
Power consumption (nominal) - 10mA per phase
Leakage current to earth - 600μA
Terminals - 16mm2 max - Line, Neutral, Earth
                    2.5mm2 max - Remote Signalling
Operating temperature - -40° to +70° Celcius
Light emitting diodes status indication - Green - Full Protection
                                                               Red & Green - Reduced Protection
                                                               Red - No Protection
Case - Steel - Epoxy Paint
Type according to BS EN 61643-11 - 2
Dimensions (in mm)
L - 176
W - 110
D - 72
Weight (in grams) - 1110
Part Code : without remote signalling - DSP3/600
Part Code : with remote signalling - DSP3A/600

Sale Conditions: I take care in describing my goods as honestly and accurately as I can. If you require further details or clarification, please don't hesitate to contact me.

Shipping: Items are shipped using Australia Post and are charged at cost. Items will be shipped within 1-2 business days of payment. Shipping can be combined if larger quantities are purchased. Other freight methods may be available - contact me first for details. Note: For very large items, freight will be required (Australia post won't send them). Please contact me first.

Item Collection: This collection is from Killara (North of Sydney).

Payment: Please respond with payment or contact within 24 hours of item sale. Don't bid if you don't intend to pay. Note: I prefer bank deposit or PayPal where possible.

Feedback: After receipt of my item, please leave positive feedback. I will do the same one I've received your feedback. If you have any problems, please contact me before leaving any negative feedback - thank you for your business!

I'm listing new things all the time - check out my other items for sale! Visit My Store here!

International Buyers please note: Import duties, taxes, and charges aren't included in the item price or postage cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.

Images are for reference only. See Product Specifications. Please order as per the Product Specifications.
