ABB Manual Motor Starter - MS132-2.5-1SAM350000R1007

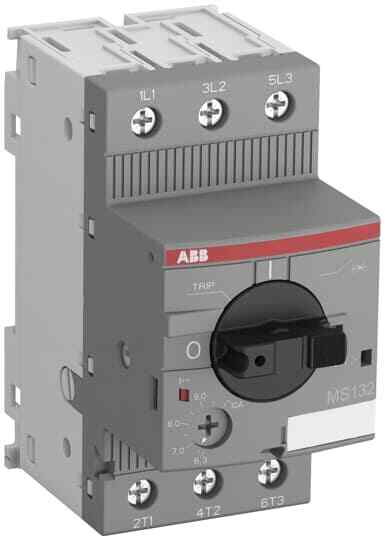

ABB MS132-2.5-1SAM350000R1007 Manual Motor Starter

• Brand new item, still in OEM packaging
• - Check out the images for more product details

Product details:

The MS132-2.5 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 2.50 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 100 kA at 400 VAC and trip class 10. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks are available as accessory.

Key features:

• Rated Service Short-Circuit Breaking Capacity (Ics): (230 V AC) 100 kA

                                                                                              (250 V DC) 3 Poles in Series 10 kA

                                                                                              (400 V AC) 100 kA

                                                                                              (440 V AC) 100 kA

                                                                                              (500 V AC) 100 kA

                                                                                              (690 V AC) 100 kA

• Rated Ultimate Short-Circuit Breaking Capacity (Icu): (230 V AC) 100 kA

                                                                                                 (400 V AC) 100 kA

                                                                                                 (440 V AC) 100 kA

                                                                                                 (500 V AC) 100 kA

                                                                                                 (690 V AC) 100 kA

• Rated Instantaneous Short-Circuit Current Setting (Ii): 31.3 A

• Setting Range: 1.6 ... 2.5 A

• Rated Operational Power AC-3 (Pe): (400 V) Three Phase 0.75 kW

• Rated Operational Voltage: Main Circuit 690 V AC

                                                  Main Circuit 250 V DC

• Rated Operational Current (Ie): 2.5 A

• Rated Operational Current AC-3 (Ie): 2.5 A

• Rated Operational Current DC-5 (Ie): 2.5 A

• Rated Frequency (f): Main Circuit 50 Hz

                                       Main Circuit 60 Hz

• Rated Impulse Withstand Voltage (Uimp): Main Circuit 6 kV

• Rated Insulation Voltage (Ui): 690 V

• Power Loss: at Rated Operating Conditions per Pole 0.7 ... 1.8 W

• Number of Poles: 3

• Conventional Free-air Thermal Current (Ith): Main Circuit 2.5 A

• Degree of Protection: Housing IP20

                                        Main Circuit Terminals IP10

• Pollution Degree: 3

• Electrical Durability: 50000 cycle

• Mechanical Durability: 100000 cycle

• Terminal Type: Screw Terminals

• Connecting Capacity Main Circuit: Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

                                                                Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²

                                                                Flexible 1/2x 0.75 ... 2.5 mm²

                                                                Rigid 1/2x 1 ... 4 mm²

• Tightening Torque: Main Circuit 0.8 ... 1.2 N·m

• Wire Stripping Length: Main Circuit 9 mm

• Recommended Screw Driver: Pozidriv 2

• Mounting Position: Position 1 to 6

Manufacturer: ABB

Manufacturer Part Number: MS132-2.5-1SAM350000R1007

Shipping Dimensions: 9X9X5 CM

Shipping Weight: 284 GRAMS
