ABB Contactor, DIN Rail Mounting, 6kV Rated Impulse Withstand Voltage -AF Series

Write a review

$50.00

Spend $150.00 to Free Shipping

ABB Contactor, DIN Rail Mounting, 6kV Rated Impulse Withstand Voltage - AF Series - AF09-30-10-14 / 1SBL137001R1410 PRODUCT DETAIL: Jumpstart your operations with this ABB contactor. It's up to the job of powering industrial applications as it boasts a 7A contact...View more

Hurry Up! Only 3 Left in Stock!

Add to cart

I agree with the terms and conditions

Add to compare Added to compare Add to wishlist Added to wishlist

Sku: LHBROOK-AF09-30-10-14

Barcode: 3471523110045

Availability: Many in stock Unavailable

Description
Reviews ( 0 )

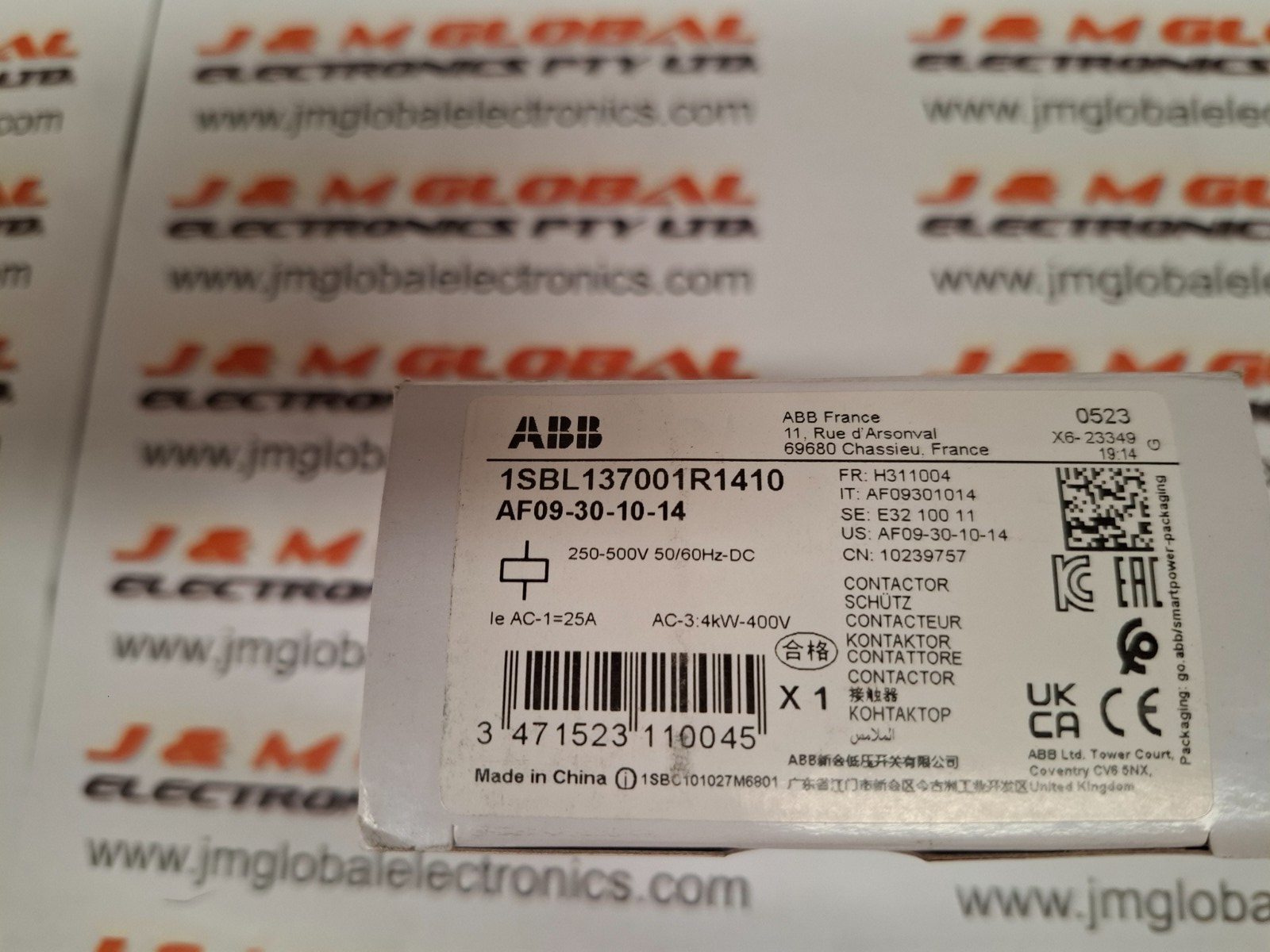

ABB Contactor, DIN Rail Mounting, 6kV Rated Impulse Withstand Voltage - AF Series - AF09-30-10-14 / 1SBL137001R1410

PRODUCT DETAIL:

Jumpstart your operations with this ABB contactor. It's up to the job of powering industrial applications as it boasts a 7A contact current rating and 4kW power output. To boost productivity, the three-pole design lets you make multiple circuit connections. The unit's block-shaped form factor means scaling up your infrastructure is a cinch. Installation takes just a jiffy, thanks to standard M3.5 screw terminals.

• 6kV rated impulse withstand voltage to shrug off damaging transient voltage spikes
• IP20 rating indicates it's touch-proof and resistant to objects bigger than 12mm, like tools or screws
• Light 0.31kg weight doesn't add excess load to your setup so minimises strain

Applications

• Industrial automation
• Construction equipment
• Assembly plants

What size is this product?

The contactor has compact dimensions of 86 (L) x 45 (W) x 77mm (D), so it's a space-efficient choice and is easy to handle.

Can I use this device in harsh industrial conditions?

Yes. You can rely on it to get the job done in a broad operating temperature range between -40°C and +70°C, so it's suited to industrial facilities.

Attribute	Value
	Brand	ABB
	Coil Voltage	500 V dc
	Number of Poles	3
	Contact Voltage Rating	690 V ac
	Contact Current Rating	7 A
	Power Rating	4 kW
	Series	AF
	Range	AF09-30-10-14
	Normal State Configuration	3NO
	Number Of Auxiliary Contacts	1
	Auxiliary Contact Configuration	1NO
	Terminal Type	Screw
	Width	45mm
	Length	86mm
	Depth	77mm
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+70°C
	Control Voltage	250 → 500 V
	Mounting Style	DIN Rail Mount
	Pole and Throw Configuration	3P

Manufacturer: ABB

Manufacturer Part Number: AF09-30-10-14 (1SBL137001R1410)

Listing Quantity: Each

Product Shipping Size: 9 X 8 X 5 cm

Shipping Weight: 323 Grams

Sale Conditions: I take care in describing my goods as honestly and accurately as I can. If you require further details or clarification, please don't hesitate to contact me.

Shipping: Items are shipped using Australia Post and are charged at cost. Items will be shipped within 1-2 business days of payment. Shipping can be combined if larger quantities are purchased. Other freight methods may be available - contact me first for details. Note: For very large items, freight will be required (Australia post won't send them). Please contact me first.

Item Collection: This collection is from Seven Hills NSW 2147

Payment: Please respond with payment or contact within 24 hours of item sale. Don't bid if you don't intend to pay. Note: I prefer bank deposit or PayPal where possible.

Feedback: After receipt of my item, please leave positive feedback. I will do the same one I've received your feedback. If you have any problems, please contact me before leaving any negative feedback - thank you for your business!

I'm listing new things all the time - check out my other items for sale! Visit My Store here!

International Buyers please note: Import duties, taxes, and charges aren't included in the item price or postage cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.

Images are for reference only. See Product Specifications. Please order as per the Product Specifications.
