ABB Contactor, DIN Rail Mounting, 6kV Rated Impulse Withstand Voltage -AF Series

Write a review

$49.50

Spend $500.00 to Free Shipping

ABB Contactor, DIN Rail Mounting, 6kV Rated Impulse Withstand Voltage - AF Series - 1SBL157001R1110 / AF12-30-10-11 PRODUCT DETAIL: Switch your automated machinery in a flash with this ABB contactor. It opens and closes circuits with an operating current of...View more

Hurry Up! Only 10 Left in Stock!

Add to cart

I agree with the terms and conditions

Add to compare Added to compare Add to wishlist Added to wishlist

Sku: ELECTGO-AF12-30-10-11

Availability: Many in stock Unavailable

Description
Reviews ( 0 )

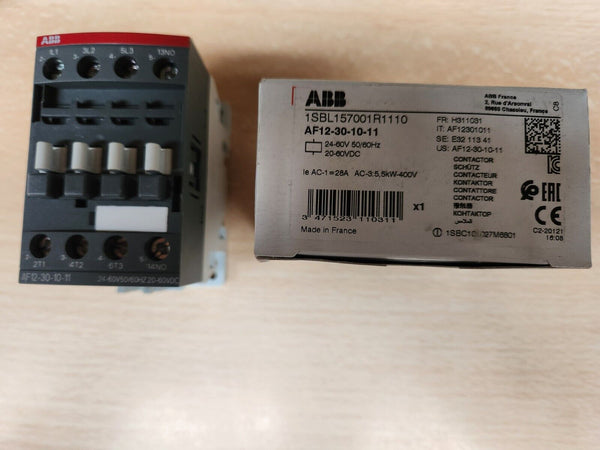

ABB Contactor, DIN Rail Mounting, 6kV Rated Impulse Withstand Voltage - AF Series - 1SBL157001R1110 / AF12-30-10-11

PRODUCT DETAIL:

Switch your automated machinery in a flash with this ABB contactor. It opens and closes circuits with an operating current of up to 28A, so it easily tackles common electrical loads. Thanks to its speedy reaction times between 11 and 98ms, the device snaps promptly into action. Handy screw terminals make it a breeze to wire without the need for complex tools. The contactor's built-in auxiliary contact boosts its functionality and makes it a cinch to send signals to a control device.

Feature and Benefits:

• Electrical switching frequency of up to 1200 operations per hour to keep up with heavy switching demands
• Compact dimensions of just 77 (L) x 45 (W) x 86mm (H) to maximise space in your system
• Clips onto a DIN rail for quick and simple installation
• Built-in surge protection to reduce the risk of damage caused by electrical faul

APPLICATIONS:

• Lighting systems
• Manufacturing facilities
• Industrial automation

How do I identify this contactor's auxiliary contact?

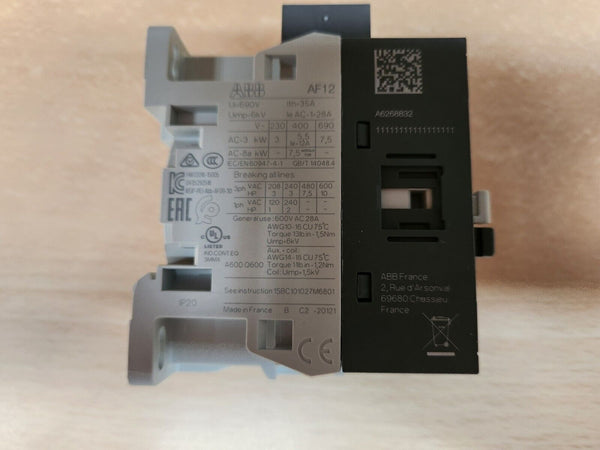

This product's front plate comes with labels to identify each of its terminals, making it easy to tell its auxiliary contact apart from its main poles immediately.

SPECIFICATIONS:

Attribute	Value
Coil Voltage	24 V ac/dc
Number of Poles	3
Contact Voltage Rating	690 V ac
Contact Current Rating	28 A
Range	AF12-30-10-11
Series	AF
Power Rating	5.5 kW
Normal State Configuration	3NO
Auxiliary Contact Configuration	1NO
Number Of Auxiliary Contacts	1
Terminal Type	Screw
Width	45mm
Length	86mm
Depth	77mm
Mounting Style	DIN Rail
Control Voltage	60 V
Maximum Operating Temperature	+60°C
Pole and Throw Configuration	3P
Minimum Operating Temperature	-25°C

Manufacturer: ABB

Manufacturer Part Number: AF12-30-10-11 (1SBL157001R1110)

Listing Quantity: Each

Product Shipping Size: 9 X 8 X 5 cm

Shipping Weight: 298 Grams
