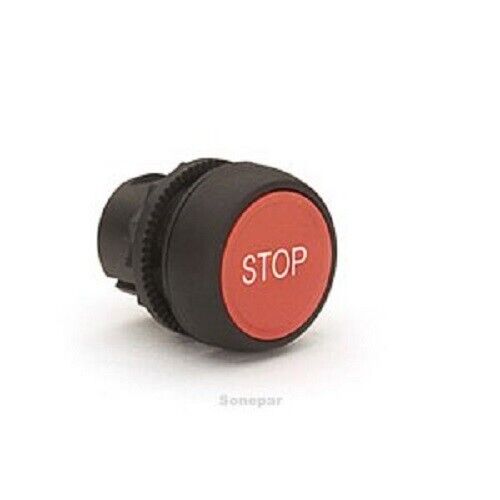

SPRECHER + SCHUH PUSHBUTTON - NHPD7PF402PX01
-Brand new item, still in OEM packaging
-Check out the images for more product details
Product details:
PUSHBUTTONS AND PILOT LIGHTS
D7 PILOT DEVICES OFFER MAXIMUM FLEXIBILITY AND A WIDE CHOICE FOR ALL 22.5MM OPERATOR APPLICATIONS WITH ALL TYPE (E-STOPS, SELECTOR SWITCHES, PUSHBUTTONS, PILOT LIGHTS AND MORE), COLOUR AND CONTACT CONFIGURATIONS. AESTHETICALLY APPEALING AND MODULARLY DESIGNED TO MAKE ASSEMBLY AND INTERCHANGEABILITY EASY. OPERATORS EXHIBIT LOW PROFILE AND STYLISH APPEARANCE WHILE MAINTAINING THE RUGGED PERFORMANCE NECESSARY FOR DEMANDING ENVIRONMENTS, D7P IS A PLASTIC OPERATOR WITH A CAPTIVE BLACK PLASTIC FRONT BEZEL. CONSTRUCTED OF HIGH-GRADE THERMOPLASTICS, THE D7P IS SUITABLE FOR ALMOST ALL ENVIRONMENTS AND STRONG CHEMICAL RESISTANCE. D7M HAS A DIE-CAST ZINC HOUSING AND MOUNTING RING FOR RUGGED DURABILITY. FINISHED WITH CORROSION RESISTANT CHROME PLATING, THE D7M ALSO FEATURES A CAPTIVE SHINY METAL BEZEL FOR A POLISHED APPEARANCE.
BRAND SPRECHER + SCHUH
ITEM DESCRIPTION BUTTON FLUSH PLASTIC RED STOP - 1N/C.
CE MARKED YES
COLOUR, CONTACT ACTUATOR RED
COLOUR, OPERATOR RED
COMPATIBLE PRODUCT SERIES D7 22.5MM CONTROL AND INDICATION
COMPONENT TYPE PUSHBUTTON AND PILOT LIGHTS PUSHBUTTON
CONTACT BLOCK INCLUDED YES
CONTACT CONFIGURATION 1 NC
COUPLING PLATE INCLUDED YES
DIAMETER, OPERATOR 29.6
DIELECTRIC STRENGTH 2.5KV FOR 1 MINUTE
ELECTRICAL SERVICE LIFE AT UN, IN 500000
FUSE TYPE GL/GG CARTRIDGE FUSE, IE
THERMAL CURRENT, OPEN 10
LAMP MODULE INCLUDED NO
LINEAR TRAVEL TO ACTUATION 1.5
MATERIAL, BEZEL GLASS-FILLED NYLON / PA6 / PA66 (POLYAMIDE 6)
MATERIAL, BODY / HOUSING POLYCARBONATE AND PBT BLEND
MATERIAL, CONTACT SILVER NICKEL (AGNI)
MATERIAL, COUPLING PLATE GLASS-FILLED NYLON / PA6 / PA66 (POLYAMIDE 6)
MATERIAL, OPERATOR PLASTIC
MATERIAL, SPRING STAINLESS STEEL
MATERIAL, TERMINAL BRASS
MECHANICAL SERVICE LIFE 10000000
MOUNTING 22.5MM MOUNTING HOLE
OPERATING FORCE 5
OPERATING TEMPERATURE (MAX.) 70
OPERATING TEMPERATURE (MIN.) -25
OPERATOR ACTION MOMENTARY
OPERATOR INSERT TYPE RED INSERT
OPERATOR TYPE PUSHBUTTON
FLUSH, PAD LOCKABLE YES
PICKUP CURRENT 5
PICKUP VOLTAGE 17
RECOMMENDED FUSE RATING 10
RELATIVE HUMIDITY, MAX 95
RELATIVE HUMIDITY, MIN 50
ROHS APPROVED YES
SHOCK ACCELERATION (MAX.) 100
SHOCK DURATION (MAX.) 11
STORAGE TEMPERATURE (MAX.) 85
STORAGE TEMPERATURE (MIN.) -25
TERMINAL TYPE SCREW TERMINAL(S)
TIGHTENING TORQUE, NOMINAL 1.7, UI
RATED INSULATION VOLTAGE 680
VIBRATION ACCELERATION (MAX.) 10
VIBRATION DISPLACEMENT (PEAK TO PEAK MAX.) 1.52 VIBRATION DURATION (MAX.): 180
VIBRATION FREQUENCY, OPERATIONAL (MAX.) 2000
WIRE / CONDUCTOR SIZE (MAX) 2.5 MM²
WIRE / CONDUCTOR SIZE (MIN) 0.75 MM²
CONSTRUCTION TYPE LENS ROUND
NUMBER OF NORMALLY CLOSED (N/C) CONTACTS 1
NUMBER OF COMMAND POSITIONS 1
SPRING-RETURN YES
SUITABLE FOR ILLUMINATION NO
TYPE OF BUTTON FLAT
TYPE OF ELECTRIC CONNECTION SCREW CONNECTION
WITH FRONT RING YES
Manufacturer: SPRECHER + SCHUH
Manufacturer Part Number: NHPD7PF402PX01
Listing Quantity: Each
Product Shipping Size: 23 x 19 x 4 cm
Shipping Weight: 36 g
