NF Op Amp Module 2-channel 20-Pin SIP - CA-406L2

Write a review

$34.31

Spend $150.00 to Free Shipping

NF CA-406L2 Op Amp Module 2-channel 20-Pin SIP - Brand new item, still in OEM packaging - Check out the images for more product details Product details: - Externally programmable gain (6 pins) - CMOS/TTL compatible control inputs - Low...View more

Hurry Up! Only 3 Left in Stock!

Add to cart

I agree with the terms and conditions

Add to compare Added to compare Add to wishlist Added to wishlist

Sku: JM-NF-CA-406L2

Availability: Many in stock Unavailable

Description
Reviews ( 0 )

NF CA-406L2 Op Amp Module 2-channel 20-Pin SIP

- Brand new item, still in OEM packaging

- Check out the images for more product details

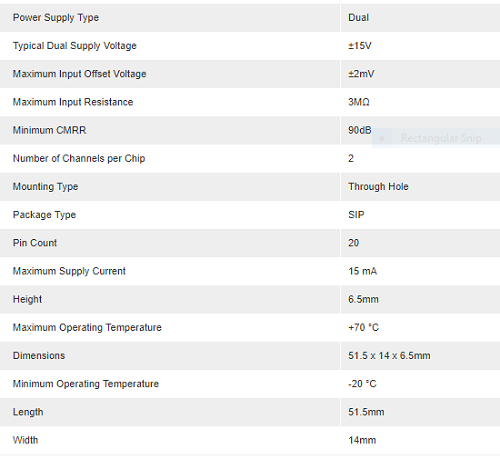

Product details:

- Externally programmable gain (6 pins)

- CMOS/TTL compatible control inputs

- Low noise, high reliability

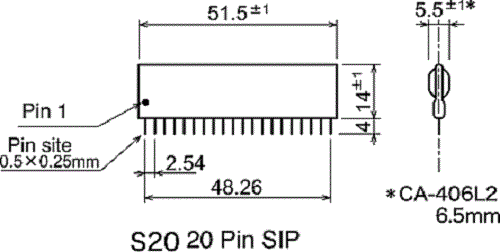

- 20-pin SIP package

Manufacturer: NF

Manufacturer Part Number: CA-406L2

Gain setting: x1, 2, 5, 10, 20, 50, 100

Gain setting error: ±0.1% typical, ±0.4% max

Maximum output: ±10 V @ 2kΩ

Output impedance: Below 5 Ω

Power supply voltage: ±14 → ±16 V

Temperature/humidity range: -20 → +70 °C, 10 → 95% RH (Operating)

-30 → +80 °C, 10 → 80% RH (Storage)

Bandwidth, small signal: CA-206L2: ±3 dB DC to 500 kHz

CA-406L2: ±3 dB DC to 200 kHz

Sale Conditions: I take care in describing my goods as honestly and accurately as I can. If you require further details or clarification, please don't hesitate to contact me.

Shipping: Items are shipped using Australia Post and are charged at cost. Items will be shipped within 1-2 business days of payment. Shipping can be combined if larger quantities are purchased. Other freight methods may be available - contact me first for details. Note: For very large items, freight will be required (Australia post won't send them). Please contact me first.

Item Collection: This collection is from Killara (North of Sydney).

Payment: Please respond with payment or contact within 24 hours of item sale. Don't bid if you don't intend to pay. Note: I prefer bank deposit or PayPal where possible.

Feedback: After receipt of my item, please leave positive feedback. I will do the same one I've received your feedback. If you have any problems, please contact me before leaving any negative feedback - thank you for your business!

I'm listing new things all the time - check out my other items for sale! Visit My Store here!

International Buyers please note: Import duties, taxes, and charges aren't included in the item price or postage cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.

Images are for reference only. See Product Specifications. Please order as per the Product Specifications.
