Ledil C13301_STRADA-2X2-T3, Strada-Module Series 4-Way LED Lens, Square Beam

- Brand new item, still in OEM packaging

Check out the images for more product details
Product details
LEDiL STRADA-Module 2x2 Series LED Lenses
STRADA LED lenses were originally designed for street lighting applications. The STRADA family now includes a variety of lenses that suit a range of other applications too.

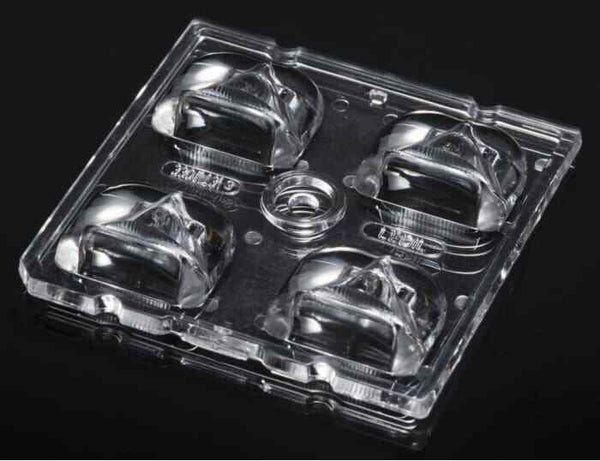

The STRADA 2x2 modules feature 4 lenses within a single 50 mm square array. They are designed to be more cost effective than individual lenses and they also offer easier sealing. STRADA 2x2 modules have a mounting hole in the centre for a screw. When they are stacked next to each other, four additional screws can be used to secure the lenses.
Made using an optical grade PMMA, the STRADA 2x2 lenses offer a high UV and temperature resistance. They fasten into place using positioning pins and glue.
STRADA 2x2 lens modules have been designed and optimised for use with a variety of LEDs. Due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.
Note
The viewing angle produced (the full angle measured at the half peak luminous intensity value) will vary depending on the chip size, colour and position of the LED.
LEDiL Street Lighting LED Lenses
The Street Lighting range from LEDiL is designed for applications where the lens is mounted at a height. This includes street lamps, road lighting or warehouse aisle lighting.
Specifications
Brand
Ledil
Series
Strada-Module
Number of LEDs Per Lens
4
Emission Pattern
Square
Affixing Method
Glue, Pin, Screw
For Use With
XM-L
Dimensions
50 x 50 x 7.1mm
Clear or Diffused
Clear
Height
7.1mm
Length
50mm
Width
50mm
Country of Origin
CN
Manufacturer: LEDIL
Manufacturer Part Number: C13301_STRADA-2X2-T3
