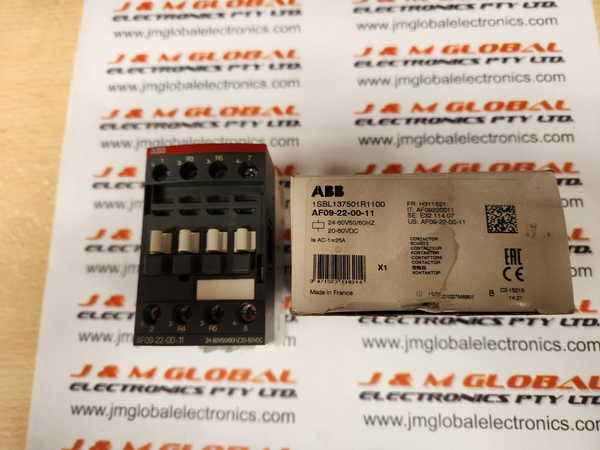

CONTACTOR 4KW 2NO 2NC 24.60V - ABB - AF09-22-00-11 / 1SBL137501R1100

Write a review

$95.40

Spend $150.00 to Free Shipping

CONTACTOR 4KW 2NO 2NC 24.60V - ABB - AF09-22-00-11 / 1SBL137501R1100PRODUCT DETAILS: CONTACTOR 4KW 2NO 2NC 24..60V AF09 4-pole contactors are used for controlling power circuits up to 690 V AC and 440 V DC. They are mainly used for...View more

Hurry Up! Only 1 Left in Stock!

Add to cart

I agree with the terms and conditions

Add to compare Added to compare Add to wishlist Added to wishlist

Sku: JRTPEAK-AF0220011

Availability: Many in stock Unavailable

Description
Reviews ( 0 )

CONTACTOR 4KW 2NO 2NC 24.60V - ABB - AF09-22-00-11 / 1SBL137501R1100

PRODUCT DETAILS:

CONTACTOR 4KW 2NO 2NC 24..60V

AF09 4-pole contactors are used for controlling power circuits up to 690 V AC and 440 V DC.

They are mainly used for controlling non-inductive or slightly inductive loads (i.e. resistance furnaces...). AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max.

Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC.

AF contactors can manage large control voltage variations.

One coil can be used for different control voltages used worldwide without any coil change.

AF contactors have built-in surge protection and do not require additional surge suppressors.

The AF... series 4-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 2 N.O. + 2 N.C. main poles, front and side-mounted add-on auxiliary contact blocks (mechanically linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC or DC operated -

Note: - AF.-..-..-11 not suitable for a direct control by PLC-output.

Technical Specifications

Power contactor AC switching
Rated control supply voltage Us at AC 50HZ		60 V
Rated control supply voltage Us at AC 60HZ		24 V
Rated control supply voltage Us at DC		60 V
Voltage type for actuating		AC/DC
Rated operation current Ie at AC-1, 400 V		25
Rated operation current Ie at AC-3, 400 V		9
Rated operation power at AC-3, 400 V		4 kW
Modular version		No

Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Type of electrical connection of main circuit	Screw connection
Number of normally closed contacts as main contact	2
Number of main contacts as normally open contact	2
Number of poles (total)	3
Rated power	4
Rated operation current Ie at AC-3	9

MANUFACTURER: ABB

PART NUMBER: AF09-22-00-11

WEIGHT: 288 GRAMS

DIMENSIONS: 9 X 8 X 5 CM
