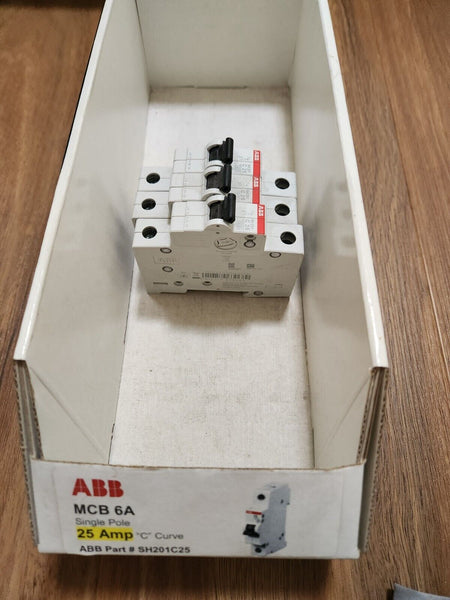

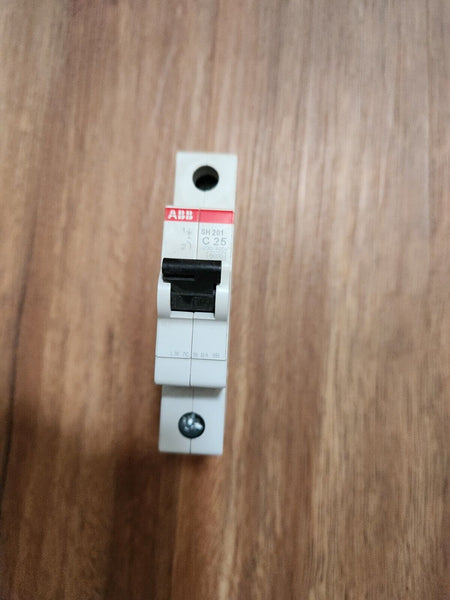

ABB SH201C25 MCB 6kA 1P 25A 230VAC C CURVE DOMESTIC
PRODUCT DETAILS:
The ABB Miniature Circuit Breaker is a 1 pole breaker with a current rating of 25A and voltage rating of 230VAC. It provides C curve protection against short circuit and thermal overload. This breaker is specifically designed for load centre applications and cannot be chassis mounted. It belongs to the domestic range of ABB products.
Miniature circuit breaker (MCB)
Release characteristic C
Number of poles (total) 1
Number of protected poles 1
Rated current 25 A
Rated voltage 230 V
Rated insulation voltage Ui 440 V
Rated impulse withstand voltage Uimp 4 kV
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 6 kA
Voltage type AC
Frequency 50 Hz
Current limiting class 3
Suitable for flush-mounted installation No
Concurrently switching N-neutral No
Over voltage category 3
Pollution degree 2
Additional equipment possible No
Width in number of modular spacings 1
Built-in depth 69
Degree of protection (IP) IP2X
Ambient temperature during operating -25 °C
Connectable conductor cross section multi-wired 0 mm²
Connectable conductor cross section solid-core 0 mm²
Mounting method DIN rail
Width 17.5
Height 85
MANUFACTURER: ABB
PART NUMBER: SH201C25
WEIGHT: 89 GRAMS
DIMENSIONS: 9 X 7 X 2 CM
