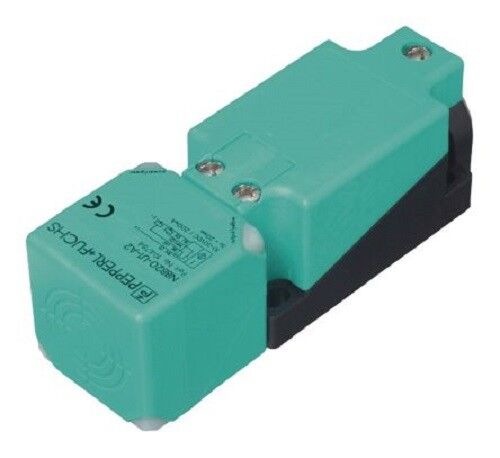

Pepperl+Fuchs PNP-NC Inductive Sensor 118mm Length IP68, IP69K - NBB20-U1-E3

Write a review

$119.53

Spend $500.00 to Free Shipping

Pepperl + Fuchs NBB20-U1-E3 PNP-NC Inductive Sensor 118mm Length, 10 → 30 V dc supply voltage , IP68, IP69K Rating - Brand new item, still in OEM packaging - Check out the images for more product details Product details These...View more

Hurry Up! Only 1 Left in Stock!

Add to cart

I agree with the terms and conditions

Add to compare Added to compare Add to wishlist Added to wishlist

Sku: JMRS-8771592

Availability: Many in stock Unavailable

Description
Reviews ( 0 )

Pepperl + Fuchs NBB20-U1-E3 PNP-NC Inductive Sensor 118mm Length, 10 → 30 V dc supply voltage , IP68, IP69K Rating

- Brand new item, still in OEM packaging

- Check out the images for more product details

Product details

These Varikont sensors have an extraordinary reliability and robustness under extreme conditions and their advanced technology guarantees an almost unlimited range of applications. The four-corner power and output status LEDs enable 360º visibility so that the operating and switching states can be monitored from every angle.

Range of sensing distance options to suit the application requirements

Superior EMC intereference immunity

Operating temperature range from -25 ºC to +85 ºC

Easy replacement, no rewiring required

Robust, waterproof and UV resistant

Manufacturer: Pepperl+Fuchs

Manufacturer Part Number: NBB20-U1-E3

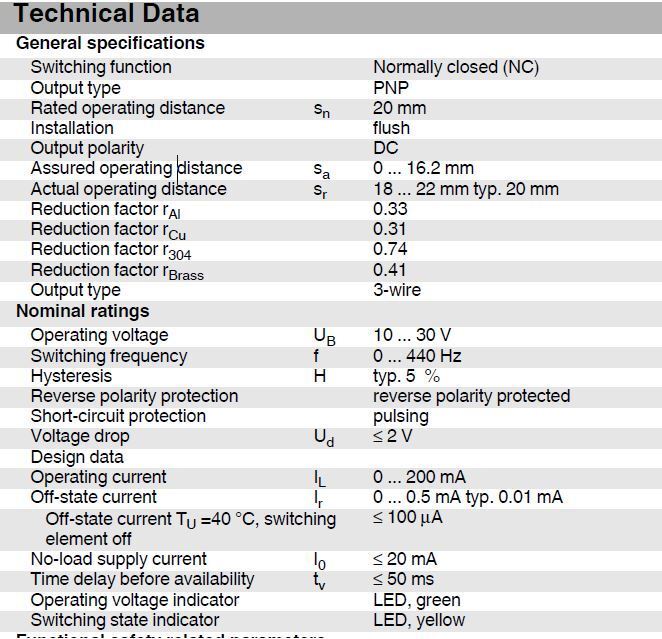

Technical Data

General specifications

Switching function Normally closed (NC)

Output type PNP

Rated operating distance Sn 20 mm

Installation flush

Output polarity DC

Assured operating distance Sa 0 ... 16.2 mm

Actual operating distance Sr 18 ... 22 mm typ. 20 mm

Reduction factor rAl 0.33

Reduction factor rCu 0.31

Reduction factor r304 0.74

Reduction factor rBrass 0.41

Output type 3-wire

Sale Conditions: I take care in describing my goods as honestly and accurately as I can. If you require further details or clarification, please don't hesitate to contact me.

Shipping: Items are shipped using Australia Post and are charged at cost. Items will be shipped within 1-2 business days of payment. Shipping can be combined if larger quantities are purchased. Other freight methods may be available - contact me first for details. Note: For very large items, freight will be required (Australia post won't send them). Please contact me first.

Item Collection: This collection is from Killara (North of Sydney).

Payment: Please respond with payment or contact within 24 hours of item sale. Don't bid if you don't intend to pay. Note: I prefer bank deposit or PayPal where possible.

Feedback: After receipt of my item, please leave positive feedback. I will do the same one I've received your feedback. If you have any problems, please contact me before leaving any negative feedback - thank you for your business!

Images are for reference only. See Product Specifications. Please order as per the Product Specifications.

Pepperl + Fuchs NBB20-U1-E3 PNP-NC Inductive Sensor 118mm Length, 10 → 30 V dc supply voltage , IP68, IP69K Rating
