Omron, 5 A Solid State Relay, Zero Crossing, Panel Mount, G3NA-205B DC5-24

Write a review

$39.46

Spend $500.00 to Free Shipping

Omron G3NA-205B DC5-24, 5 A Solid State Relay, Zero Crossing, Panel Mount, Phototriac, 240 V ac Maximum Load - Brand new item, still in OEM packaging - Check out the images for more product details Product details:- G3NA SSRSolid State...View more

Hurry Up! Only 1 Left in Stock!

Add to cart

I agree with the terms and conditions

Add to compare Added to compare Add to wishlist Added to wishlist

Sku: JMRS-7948704

Barcode: Does not apply

Product type: Industrial:Electrical Equipment & Supplies:Relays:Solid State Relays

Availability: Many in stock Unavailable

Description
Reviews ( 0 )

Omron G3NA-205B DC5-24, 5 A Solid State Relay, Zero Crossing, Panel Mount, Phototriac, 240 V ac Maximum Load

- Brand new item, still in OEM packaging

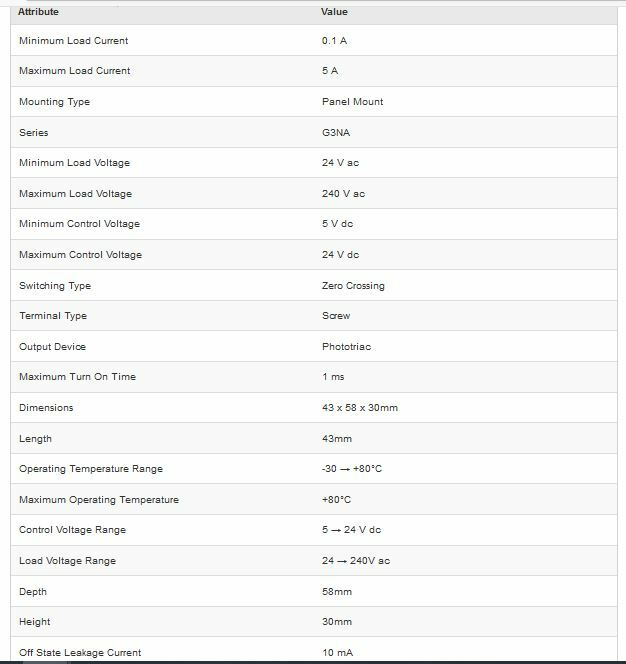

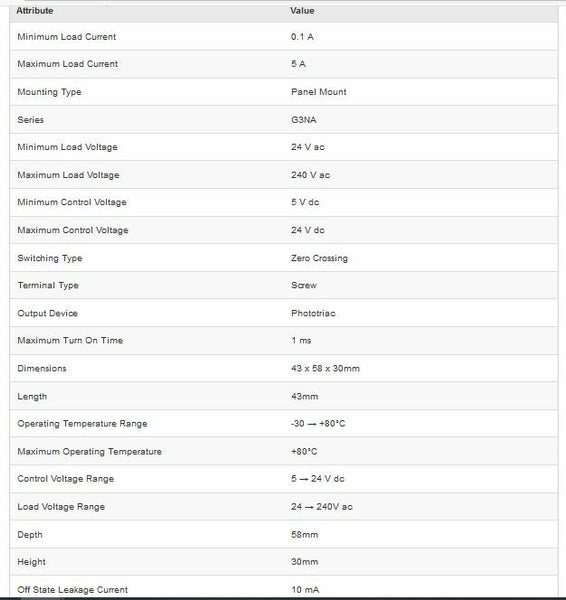

- Check out the images for more product details

Product details:-

G3NA SSR

Solid State Relays from Omron that are compact with a thin profile, ideal for close PCB mounting. They are a small bottom surface area SSR with a monoblock construction incorporating the PCB, terminals and a heatsink.
G3NA-205B DC5-24 General Purpose SSR – Solid State Relay.

G3NA series of SSR – Solid state Relays have compact features with a uniform mounting pitch including a built-in varistor which absorbs external surges. Indicators are included as is a protective cover for added safety. Standard models are certified by UL and CSA plus UTU models by TUV.

Features and Benefits of G3NA-205B DC5-24 General Purpose SSR – Solid State Relay.
• Phototriac coupler.
• Zero Cross Function.
• Yellow indicator.
• Applicable Output load 5 A at 24 to 240 V ac (When the SSR – Solid state relay is used with silicon grease applied to the heat sink depending on the ambient temperature).
• Rated input voltage 5 to 24 V dc.

SSR – Solid state relay Input Ratings at 25°C Ambient.
• Operating voltage 4 to 32 V dc.
• Impedance 7 mA max.
• Must operate voltage 4 V dc max.
• Must release voltage 1 V dc min

SSR – Solid state relay Output.
• Rated load voltage 24 to 240 V ac.
• Load voltage range 19 to 264 V ac.
• Load current with heat sink 0.1 to 5 A at 40°C.
• Load current without heat sink 0.1 to 3 A at 40°C.
• Inrush current 60 A (60 Hz, 1 cycle).

G3NA-205B DC5-24 SSR – Solid State Relay Additional Features.
• Operate time of load power source cycle + 1 ms max (dc input)
• Operate time 3/2 of load power source cycle + 1 ms max (ac input)
• Output on voltage drop 1.6 V (RMS) max.
• Leakage current 5 mA max (at 100 V ac), 10 mA max (at 200 V ac).
• Vibration resistance – destruction – 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude).
• Shock resistance – destruction – 1000 m/s²
• Ambient operating temperature -30°C to 80°C
• SSR Weight 60 g
• RoHS Compliant.

Manufacturer: Omron

Manufacturer Part Number: G3NA-205B DC5-24

Shipping Dimensions: 5X5X8 CM

Shipping Weight: 75 GR
