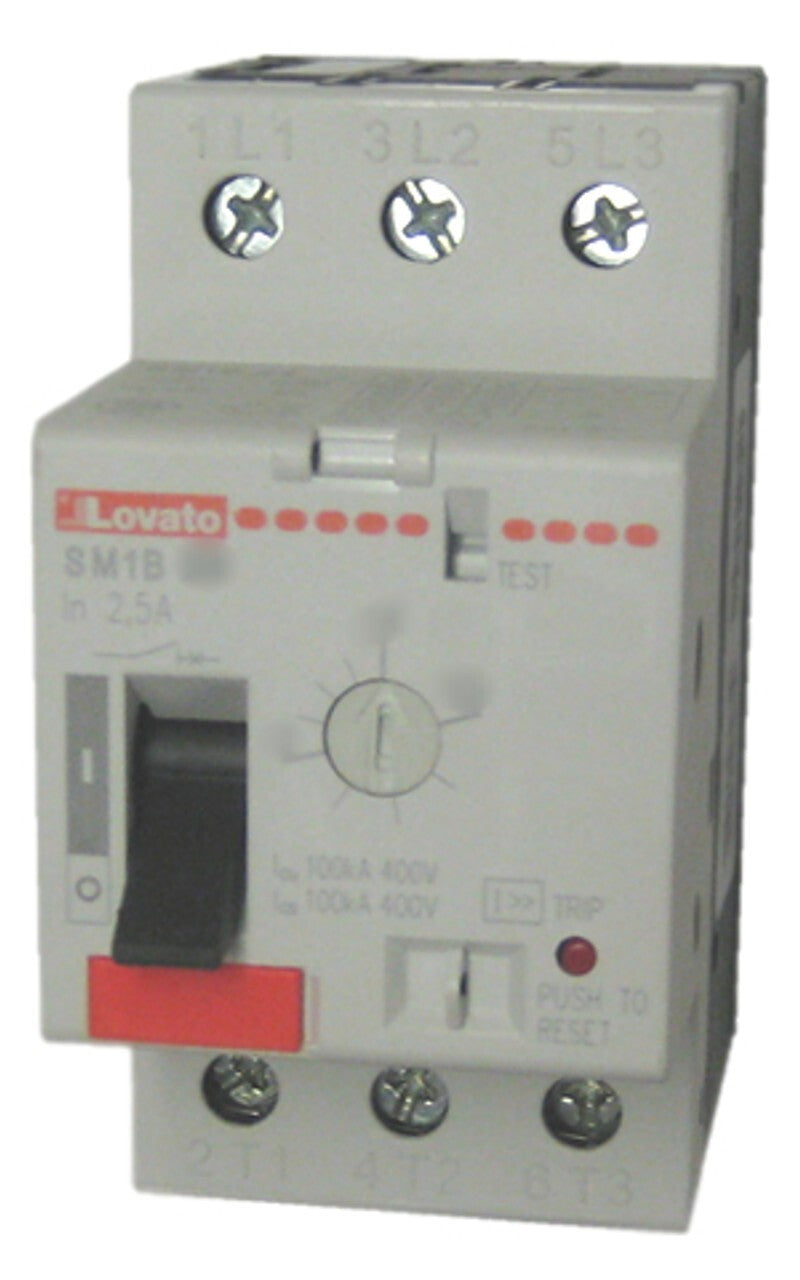

Lovato Motor Protection Circuit Breaker- 11SM1B28

-Brand new item, still in OEM packaging

-Check out the images for more product details

Product details:

PRODUCT DESCRIPTION

Lovato 11SM1B28 motor protection circuit breaker that is adjustable from 2.5 to 4 AMPS, has a on/off toggle switch and mounts on standard 35MM din rail. This motor protector has a Class 10 tripping characteristic, is phase failure sensitive (trips in a phase loss condition) and lasts for 100,000 electrical and mechanical operations. Front and side mounted auxiliaries can be added to the 11SM1B28 for motor signalling and tripping purposes.

AMP range 2.5 to 4 AMPS

Phase loss protection? Yes

Trip Class 10 (trips in 10 seconds or less)

Reset Manual

General characteristics

The SM1B series is a new generation of manual starters with thermal and magnetic trip releases. Motor control and protection, up to 20HP at 460V, are possible by the choice of suitable adjustment range, 0.1 to 32A. A magnetic trip indicator integrated on the SM1B starters avoids dangerous closing operations during short-circuit conditions, previously disconnected by the starter. The SM1B types are suitable for isolation.

Operational characteristics

Rated insulation voltage Ui: 690V
Rated impulse voltage: 6kV
Rated frequency: 50/60Hz
Maximum rated current: 32A
Number of adjustment ranges: 15 (0.1 to 32A)
Power dissipation per phase: 2.2-9.7W
Magnetic tripping: 12 In max
Thermal tripping time class: 10A
Single-phase sensitive
Mechanical life: 100,000 cycles
Electrical life 32A (AC3): 100,000 cycles
Utilization category: A
Mounting on 35mm DIN rail (IEC/EN 60715)
Mounting position: any
Degree of protection: IP20.

Certifications and compliance

UL listed, for USA and Canada, file E93602.Compliant with standards: IEC/EN 60947-1,IEC/EN 60947-2, IEC/EN 60947-4-1.

Manufacturer: Lovata

Manufacturer Part Number: 11 SM1B 28

Listing Quantity: Each

Product Shipping Size: 9 x 9 x 5 cm

Shipping Weight: 350 g
