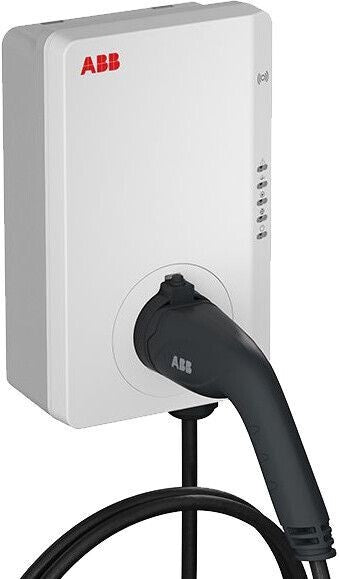

ABB EV Charger 3P 415V 22kW Wi-F Bluetooth Ethernet 4G & RFID - TAC-W22-G5-R-C-0

Write a review

$1,250.00

Spend $150.00 to Free Shipping

ABB EV Charger 3P 415V 22kW Wi-Fi Bluetooth Ethernet 4G & RFID - TAC-W22-G5-R-C-0 Manufacturer: ABB Part Number: TAC-W22-G5-R-C-0 Delivers up to 22 kW power at 32 A Supports Wi-Fi, Ethernet, Bluetooth Operates in -30 to 50°C temperature range Wall-mounted with...View more

Hurry Up! Only 1 Left in Stock!

Add to cart

I agree with the terms and conditions

Add to compare Added to compare Add to wishlist Added to wishlist

Sku: LHBROOK-TAC-W22-G5-R-C-0

Availability: Many in stock Unavailable

Description
Reviews ( 0 )

ABB EV Charger 3P 415V 22kW Wi-Fi Bluetooth Ethernet 4G & RFID - TAC-W22-G5-R-C-0

Manufacturer: ABB

Part Number: TAC-W22-G5-R-C-0

Delivers up to 22 kW power at 32 A
Supports Wi-Fi, Ethernet, Bluetooth
Operates in -30 to 50°C temperature range
Wall-mounted with IP54 protection
RFID and App for secure access

Technical

EV Connectors:

(AC Type 2) 1 piece

Number of Socket Outlets:

Cable only

Cable Length:

5 m

Output Power:

Nominal 22 kW

Output Voltage (Uout):

AC 3-phase 320 ... 480 V

Output Current Maximum (Iout):

AC 3-phase 32 A

Connection Power:

Nominal 22 kW

Input Voltage (Uin):

AC 3-phase 380 ... 420 V

Input Current:

3-phase 32 A

Frequency (f):

50 ... 60 Hz

Number of Phases:

3-phase

Connection Configuration:

TT, TN

Number of RCDs Electric Vehicle Supply Equipment:

Resid. Curr. Monitor

Number of Miniature Circuit Breakers (MCBs):

Integrated breaker

Surge Suppression:

Included

Overvoltage Category:

III

Overload Protection:

Overcurrent protection at 40 A

Cross-Section:

6 … 6 mm²

Ambient Air Temperature:

Operation -30 ... +50 °C

Storage -50 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Communication Interface:

Wi-Fi

Ethernet

Bluetooth

Modbus

Communication Protocol:

OCPP 1.6

Load Management Method:

OCPP - Based

Authentication Method:

RFID

App

Free Vending

Energy Meter Type:

Enclosure Type:

indoor, outdoor

Mounting Type:

Wall mounting

Housing Material:

Plastic

Degree of Protection:

acc. to IEC 60529 IP54

Impact Resistance Rating:

IK08

Technical Information:

Features: DC residual current detection

Contactor welding detection

Networkable via LAN

Networkable via Wi-Fi

Long-Term Evolution (LTE)

Static load management integrated

Suitable for dynamic load management

With Display

Operation and configuration by app

Export of charging logs
